Multi-Ports Security Retail Display System

Model No.︰


Brand Name︰


Country of Origin︰


Unit Price︰

CNY ¥ 1 / pc

Minimum Order︰

20 pc

Share on:

Product Description

Power&Alarm display system protects&charges 4pcs,6pcs,8pcs or10pcs mobile phones(Ipad/IPhone,Samsung,tablets,laptops,cameras, MP3/MP4, PDA, GPS and so on) at the same time,including 4-10pcs alarm sensors,widely used in the digital products stores.

1)Alarm conditions:
a)Break or short circuit resistacne,
b)Pry and cut spring wire ,
c)Remove the sensor,
d)Pull out the connector ……
e)other conditions
Once the alarm has been triggered, the alarm must be reset by remote control “OFF” key to disalarm

2)Charging function
Provide power for mobile phones,smart phones,tablet PCs and so on ...

1. Product size: 168*87*31mm(the main unit)
2. Main material:ABS
3. Inside Battery: 3.7V rechargeable lithium battery
4. Exterior Power Adaptor: DC5V.2000MA
5. Maximum Standby time of battery: 3 months.
6. Alarm volumn: 120dB.
7. Alarm Indication: Red warning light is twinkling.
8. Charging function
9. Controled way: Infrared remote control.
10.Offline alarm: That is to alarm when cut off any wire linked to the exhibit.
11.Sensor alarm: If sensor wire is cut, or sensor is separated from the displayed Merchandise, system will give alarm immediately.
12. Charging function
13. Sensors can be changed at your will.

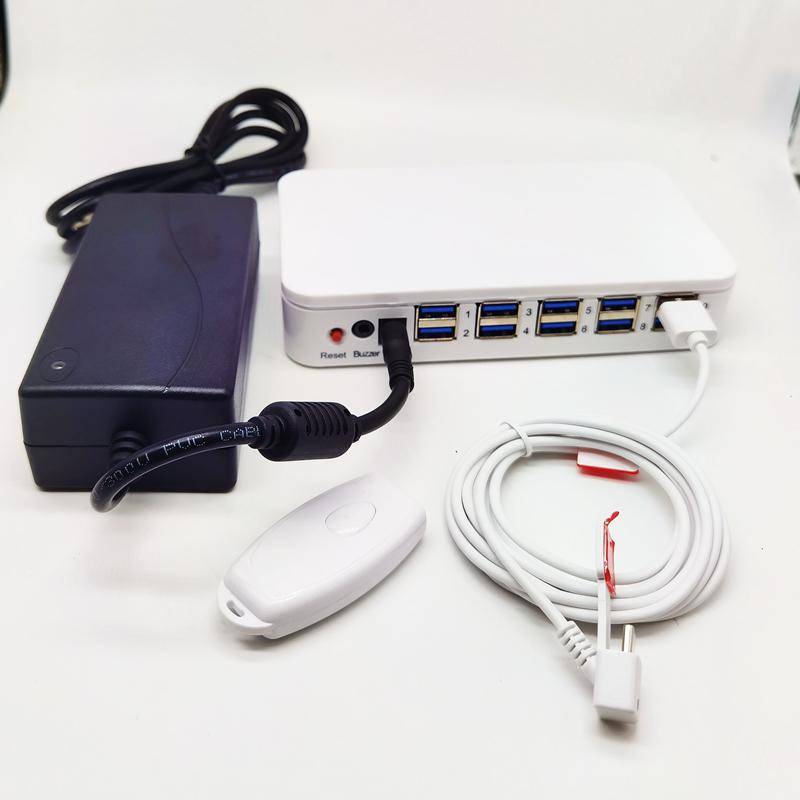

Packing list:
1*Alarm Control Unit (Main Unit)
1*Power Adaptor
1*Remote Control
1*Operation Manual
2-6pcs Sensors
2-6pcs Charging Wires

How to install:

1、Put the host on the table and supply it with 220V AC power,turn on the host by key,the LED light will turns green and twinkles.
2、Insert the crystal head (RJ45) or USB head of sensor into the host
3、Remove all 3M adhesive tapes on the sensors, paste displayed commodities to it
4、Use remote control to active the host
5、Keep the remote control in safe,a remote control can be used for different hosts

Pls feel free to contact us if you have any questions!

Keywords:multiple ports alarm display stand for iphone,multiple ports security display stand ,multi-port alarm mobile phone display stand,Multiple ports security alarm for samsung,4ports,6 Ports,8ports,10ports Mobile Phone Host With Alarm Feature,Multi Target Smart Alarm Display Stand Security,6 ports security controller with alarm function,mobile phone security display control device system,multi ports security power and alarm display system for iphone,ipad,Samsung galaxy s3,sony Experia ,HTC ,NOKIA and other smart phones,ipad ,galaxy tab ,notebook and so on

Packing︰ 1PC/CTN
Lead Time︰ 3Days

Product Image
